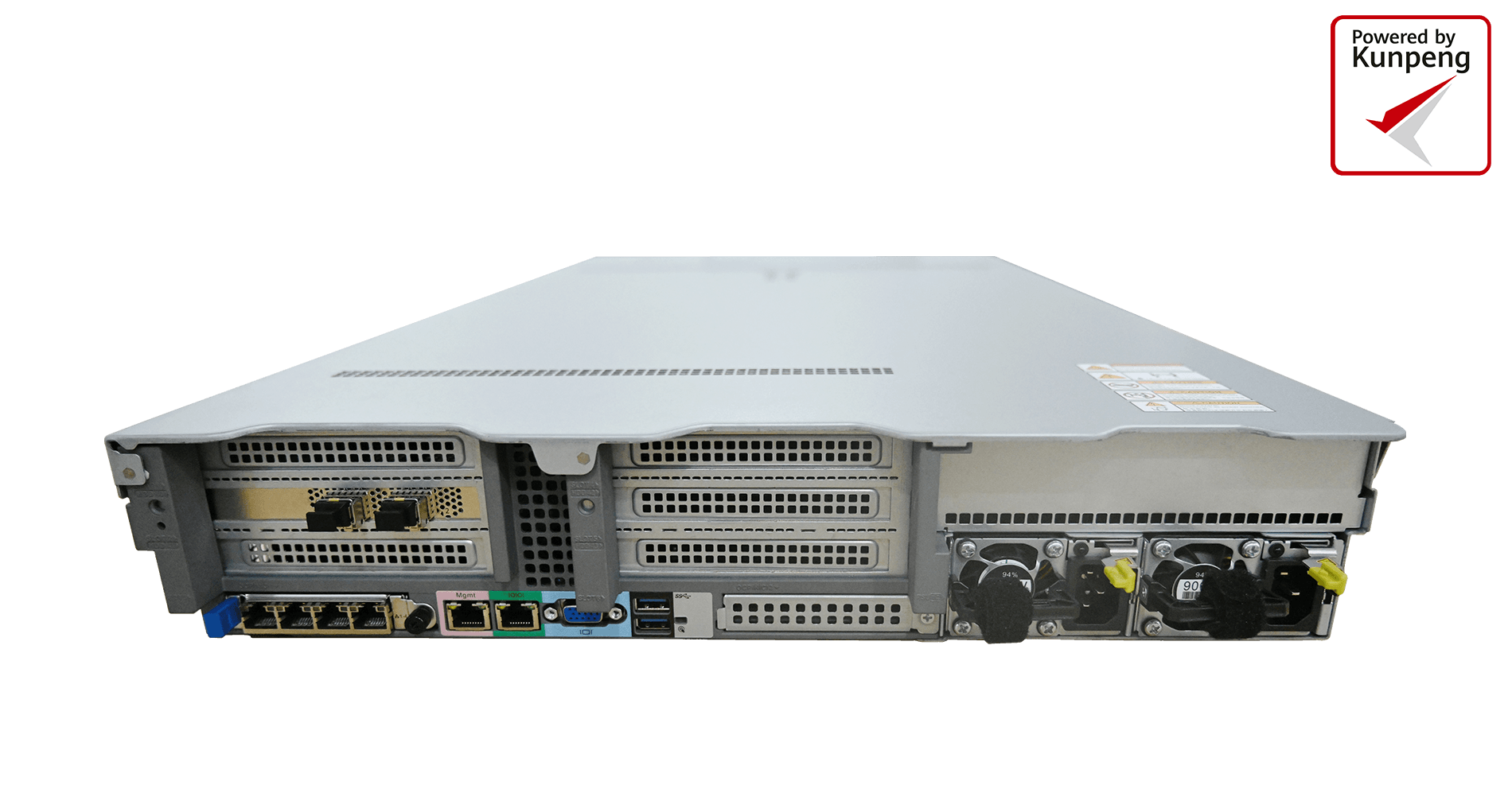

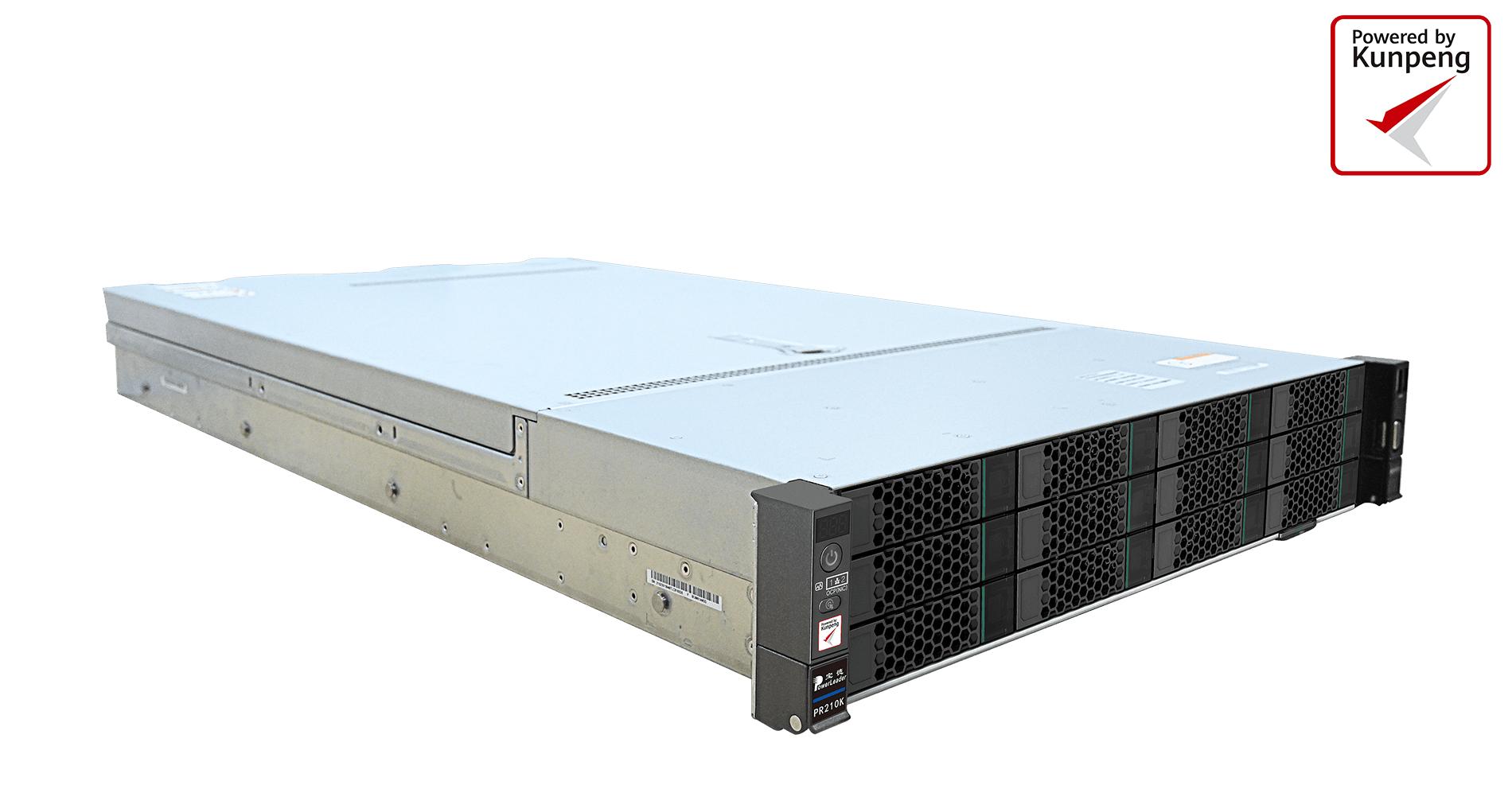

Powerleader's self-improvement Kunpeng dual -socket PR210K32 is a 2U dual-socket rack server series based on the domestic Kunpeng 920 processor, providing enterprise-level strong computing performance and scalability, multi-core high concurrency, matching massive data requirements, homogeneous deployment, zero performance Loss, perfect cloudification of mobile applications, suitable for processing needs with high information security requirements, efficient acceleration for cloud computing, big data, distributed storage, ARM native applications, high-performance computing and databases and other applications, to meet enterprise users Diversity computing, green computing needs.
Equipped with two 32 - core Kunpeng 920 high-performance general-purpose processors, whichcan provide powerful computing power and help users cope with heavier computingpressure
CPU supportsfour- channelDDR4 RDIMM ECC memory, 2 DIMMs per channel, and the whole machine supports a maximum of 16 DDR4-2933 DIMM slots
Up to 8 PCIe4.0 x8 or 3 PCIe4.0x16 + 2 PCIe4.0 x8 standard slots, highly expandable
2 onboard network cards,supporting up to 8*GE electrical ports or 8*25GE/10GE optical ports or 4*GEelectrical ports +4*25GE/10GE optical ports
Smart Array support for significantly enhanced I/Operformance
12hot-swappable 3.5/2.5 -inch SATA/SAS/SSD hard drives in the front, and 4 3.5 /2.5- inch SATA /SAS/SSD hard drives in the rear
RAID controller, supports multiple RAID protectionlevels, provides data processing performance and data protection functions
Shielded anti-electromagnetic radiation,anti-interference, anti-static design
1+1 fully redundant power supplydesign, providing higher security for the operation safety of the server
Serial port, Web management interface and other rich configurationstorage management methods, can set, manage, monitor and adjust the operationof disk array locally or remotely Row
With high-efficiencyenergy-saving power supply and dynamic cooling mechanism, which greatly savesenergy costs while maintaining its performance
Intelligentcooling system, comprehensively adjust the fan speed according to thetemperature of thermal key components, save energy, reduce noise and improvethe reliability of the fan
Independent and secureinformation industry system helps to eliminate hidden security risks in manystrategic fields such as e-government and national defense
Domestic independent securityBIOS/BMC
SUSE, Ubuntu , CentOS , open Euler, UOS , Kylin Software , Meditation, Institute of Software, Chinese Academy of Sciences,Tuolinsi, TaishanGuoxin, Puhua, Hunan Kylin and other operating systems
| model | PR210K32Technical Specifications |
|---|---|
| Machine form | Standard 19-inch 2U rackmount |
| CPUand corresponding model | Configured with 2 Kunpeng 920 2.6 GHz Model PR210K32 processor 32 cores |
| Memory | Four- channel DDR4-2933 memory RDIMM with ECC check , Supports 16 memory slots with a maximum memory capacity of 2048 GB . |
| Hard disk | Up to 16 3.5" or 27 2.5" SAS/SATA HDDs, SAS/SATA SSDs, or 16 2.5" NVMe SSDs |
| Raid support | Support RAID 0, 1, 5, 6, 10, 50, 60, support super capacitor power failure protection. |
| Display controller | The chip model is SM750, which provides 32MB of video memory and supports a maximum resolution of 16M colors at a frequency of up to 60Hz, with a maximum resolution of 1920x1200 pixels. |
| Network controller | Support 2 onboard network cards, each card supports 4*GE electrical ports or 4*10GE optical ports or 4*25GE optical ports |
| Internal and external expansion | The front panel provides 2 USB 3.0 ports, 1 DB15 VGA port. The rear panel provides 2 USB 3.0 ports, 1 DB15 VGA port, 1 RJ45 serial port, 1 RJ45 system management port. Supports up to 9 PCIe4.0 PCIe interfaces, one of which is dedicated PCIe for RAID mezzanine card Expansion slots, and the other 8 are standard PCIe expansion slots. The specific specifications of the standard PCIe4.0 expansion slot are as follows: IO module 1andIO module 2support the following PCIe specifications: – Supports 2 full-height and full-length PCIe4.0 x16 standard cards (signal is PCIe4.0 x8) and 1 full-height half-length PCIe4.0 x16 standard card (signal is PCIe4.0 x8). – Supports one full-height full-length PCIe4.0 x16 standard card and one full-height half-length PCIe4.0 x16 standard card (signal is PCIe4.0 x8). IO module 3supports the following specifications: – Supports 2 half-height half-length PCIe4.0 x16 standard cards (signal is PCIe4.0 x8). – Supports 1 half-height half-length PCIe4.0 x16 standard card. |
| Power supply | Supports 2 hot-swappable 900W or 2000W AC power modules or 1200W DC or 1500W DC power modules, supports 1+1 redundancy |
| Powered by | Support 1 00-240V AC, 240V DC, -48V DC |
| Fan | 4 hot-swappable fans, support single fan failure. |
